Set Up Guide - Zebra ZD220 & TSC DA-210 (Windows)

  • Updated
×

Zebra ZD220 & TSC DA-210 Set Up (Windows)



Zebra ZD220

1. Unbox and Prepare

  • Remove the printer and accessories from the box
  • You should have:
    • Power cable
    • USB cable (usually included)
    • Labels (starter roll)

2. Connect Power

  • Plug the power cable into the printer
  • Plug into a wall outlet
  • Turn the printer ON 👉 The status light should turn green

3. Connect to Your Computer (USB)

  • Plug the USB cable into the printer
    • *Please note that sometimes, the USB port may be hidden by a sticker on the back of the printer.
  • Plug the other end into your Windows PC
    • 👉 Windows may try to auto-detect the printer. If so, please skip to step 8.
    • If Windows does NOT auto-detect the printer, please visit the next step.

4. Download the Official Driver

  • Go to Zebra’s support website (Zebra)
  • Search for “ZD220 driver”
  • Download the driver compatible with your device:
    • Windows Printer Driver v10 (most likely)

5. Install Zebra Setup Utilities

  • Run the downloaded file
  • Follow the installation prompts
  • Launch the program after installation

6. Install the Printer via Zebra Setup Utilities

  • Open Zebra Setup Utilities
  • Click “Install New Printer”
  • Select your ZD220 from the list (usually appears as USB)
  • Follow the wizard:
    • Choose driver (ZPL recommended)
    • Keep default settings unless you have special requirements
  • Finish installation

7. Finished Installation

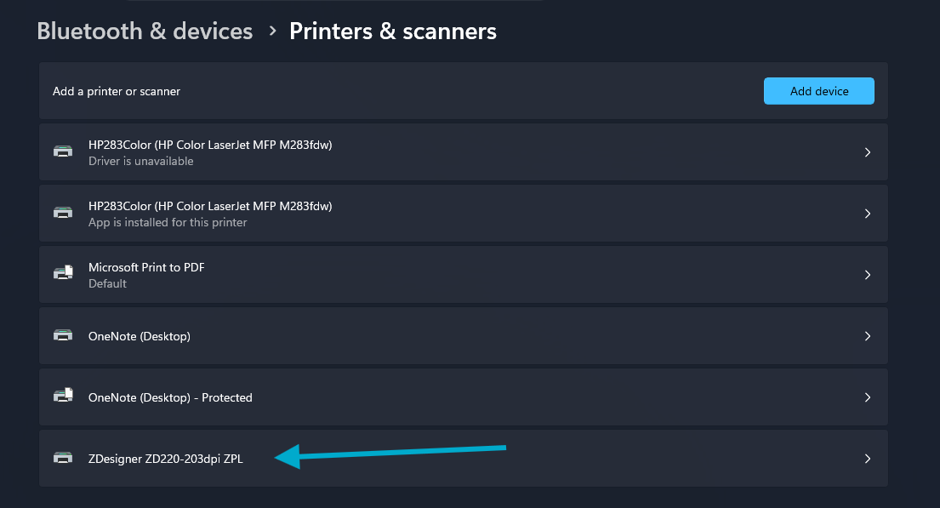

  • Once completed and fully installed, the printer will look like the below.

TSC DA-210

1. Unbox and Prepare

  • Remove the printer and accessories from the box
  • You should have:
    • Power cable
    • USB cable (usually included)
    • Labels (starter roll)

2. Connect Power

  • Plug the power cable into the printer
  • Plug into a wall outlet
  • Turn the printer ON 👉 The status light should turn green

3. Connect to Your Computer (USB)

  • Plug the USB cable into the printer
    • *Please note that sometimes, the USB port may be hidden by a sticker on the back of the printer.
  • Plug the other end into your Windows PC
    • 👉 Windows may try to auto-detect the printer. If so, please skip to step 8.
    • If Windows does NOT auto-detect the printer, please visit the next step.

4. Download the official driver

Go to the TSC Auto ID Technology company website (TSC Website):

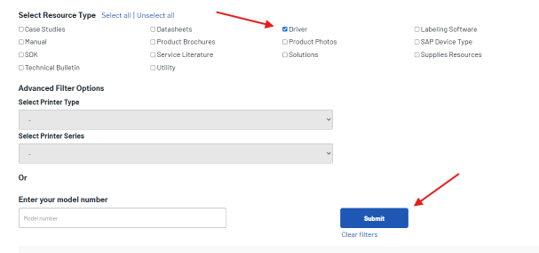

  • Select Driver in the resource type and press Submit

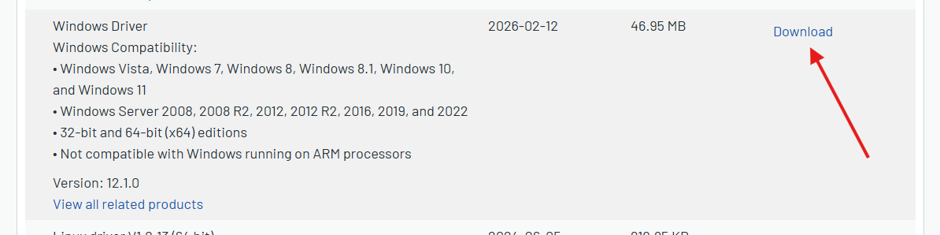

  • Download the Windows driver (usually “Seagull Driver” / Windows Driver). Ensure the most up to date driver is selected.

5. Install the driver

  • Open the downloaded file
  • Run the installer (right-click → Run as administrator if needed)
  • Follow the prompts

When it asks for connection type:

  • Choose USB

6. Add the printer in Windows

If it doesn’t auto-add:

  1. Go to:
    • Settings → Bluetooth & devices → Printers & scanners
  2. Click Add device
  3. Wait for it to appear
    • It may show as “TSC DA-210” or similar

If it doesn’t show:

  • Click Add manually
  • Choose USB port (USB001 or similar)

Final Step: Set Up Print Agent

Print Agent is the printing application that allows GoSweetSpot to communicate with your label printer.

For more information on how to set up Print Agent, visit the article below!

Print Agent 2026 (Windows)
